Valves
Valves regulate, direct or control the flow of fluids (gases, liquids or slurries) by opening or closing. Valve applications are used in all major industries such Mining Plants Pulp and Pater mills, Oil, Gas, Petrochemical and Chemical Plants. All of our valve products are offered in standard commercial ASTM and ANSI. Valve body materials are stocked from Carbon steel, Stainless, Cast Iron, Ductile Iron, Bronze and Special Alloys.
Manual Valve Products
Quarter Turn Valve Products:
Ball, Butterfly, Plug Valves
Gate, Globe and Check Valves
Bellows Seal Valves
Coker Valves
Diaphragm Valves
Flow Control Valves
HF Acid Valves
Relief Valves
Knife Gate Valves
Specialty Products (Sampling Valves, Tank, Bottom, Specialty Valves)
Washdown / Water Mixing Products
Automation & Control Products
API 6D and 6A Pipeline Valves
Body materials stocked: Alloy 20, Aluminum Bronze, Bronze, Carbon Steel, Cast Iron, Ductile Iron, F5, F9, F11/F22, F91, Hastelloy C, Inconel, LF2, LCB, LCC, Monel, Stainless Steel (316, 304, 304H, 347), WC6, WC9, C5, C12, C12A
Special Trims routinely stocked: 316 Stainless, Alloy 20, Bronze, Monel, NACE, and Full Stellite
Carbon and Stainless Bonnet Gate
Size: 2″ – 52″
Class: 150lbs – 2500lbs
Carbon and Stainless Pressure Gates
Size: 2″ – 52″
Class: 600lbs – 2500lbs
Cast Steel Conduit Slap and Expanding Gates
Size: 2″ – 48″
Class: 150lbs – 2500lbs
Carbon and Stainless Bolted B Cover Swing Checks
Size: 2″ – 52″
Class: 150lbs – 2500lbs
Carbon and Stainless Bolted Cover Full Port Swing Checks
Size: 2″ – 52″
Class: 150lbs – 2500lbs
Carbon and Stainless Pressure Seal Checks
Size: 2″ – 24″
Class: 600lbs – 2500lbs
Carbon and Stainless Bonnet Gate
Size: 2″ – 52″
Class: 150lbs – 2500lbs
Choke Valves
Pressure Rating (ASME): 150LB – 2500LB and 2000 API 6B, 3000 API 6B & 5ooo API 6B
Connection Type: Threaded, RF and RTJ
Forged Steel Gates
Wafer Size: 1/2″ – 84″
Class: 150lbs – 2500lbs
Lug Size: 2″ – 36″
Class: 150lbs – 900lbs
Forged Steel Globes
Size: 3/8″ – 2″
Class: 800lbs – 2500lbs
Forged Steel Piston Check
Size: 3/8″ – 2″
Class: 800lbs – 2500lbs
Cast Steel Lubricated Plugs
Size: 1/4′ – 24″
Class: 150lbs – 1500lbs
Cast Steel Dual Seal Expanding Plugs
Size: 2″ – 24″
Class: 150lbs – 900lbs
Carbon and Stainless Ball Valves
Size: 1/4″ – 4″
Class: 800lbs, 1000lbs, 2000lbs, 3000lbs, 6000lbs
End: Socket Weld, Threaded
Carbon and Stainless Flanged Floating Ball
Size: 1/2″ – 10″
Class: 150lbs – 300lbs
Forged Steel Swing Checks
Size: 3/8″ – 2″
Class: 800lbs – 2500lbs
Carbon and Stainless 3-Piece Trunnion Ball – API 6A
Size: 2-1/16″ – 13-5/8″
Pressure: 2000, 3000, 5000
Carbon and Stainless 3-Piece Trunnion Ball – API 6D
Size: 2″ – 48″
Class: 150lbs – 2500lbs
Knife Gate Valve
Body: Ductil, Iron, Carbon Steel, 304 and 316 Stainless Steel and Special Alloy
Seats: Metal, EPDM, Nitrile, PTFE, Viton and Urethane Liner
Size: 2″ – 36″
Pinch Valve
Type: Air Operated, Manual and Control
Design: Open and Close Frame
Size: 1″ – 24″
Needle Valve
Seat: Hard and Soft
Design: Shut Off and Regulating
Port: Multiport
Pressure: 1000lbs, 6000lbs
End: Threaded, Socket Weld, Compression
Diaphram Valve
Body: Cast Iron, Ductil Iron, 316 Stainless Steel, Alloy 20, Screwed-End Flanged
Liner: Tefzel, PFA, Kynar, Halar, Glass, Polypropylene, Hard Rubber, Soft Natural Rubber, Hypalon, Butyl, Neopreme, PVC
Size: 1/2″ – 12″
UL/FM Fire Protection Valves
Pressure: 300psi
Size: 2-1/2″ – 20″
End: Flanged X Flanged, Grove X Groove
AWWA C-515 Valves
Pressure: 250psi
End: Flanged X Flanged, M.J X M.J
Approved: UL/FM, NSF
Fire Hydrant
Type: Dry Barrel, AWWA C-502
Pressure: 250psi
Approved: UL/FM
Thermoplastic
Material: PVC, CPVC, PVDF
Types: Ball, Butterfly, Diaphram, Gate, Swing Check, Globe
Connection: Socket Weld, Threaded, Flanged

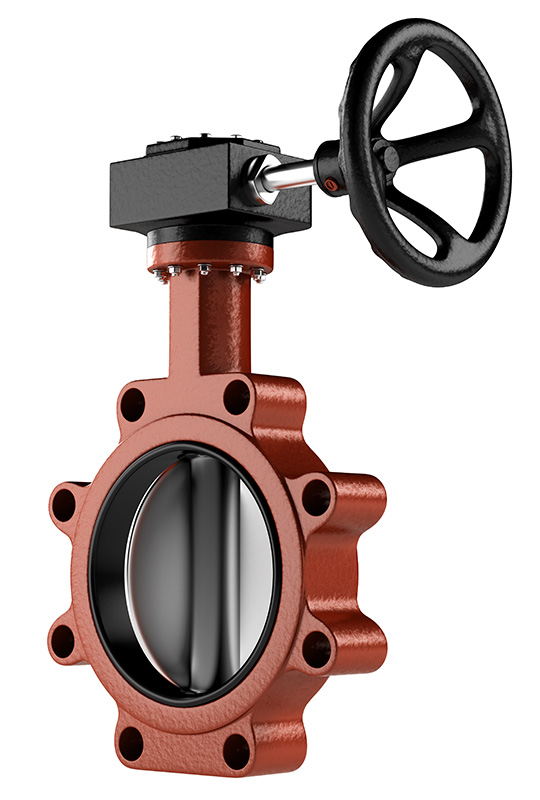

Butterfly Valve
Body: Cast, Ductil, Iron, Carbon Steel, Stainless Steel, Special Alloys
Seat: EPDM, Buna, Viton, Teflon, Metal, Teflon Encapsulated Disc and Liner
Design: Ecentric, Double Ecentric, Tripple Ecentric
Pressure: 125lbs, 150lbs, 300lbs, 600lbs
Size: 2″ – 72″
Line Valves
Types: Butterfly, Plug, Ball, Check, Strainer, Sight Glass
Body Material: Ductile Iron, Cast Steel, Stainless Steel
Liner: PFA, PTFE, UHMWPE
Design: Non-Lubricated
Size: 1″ – 24″
End: Flanged, Threaded, Multiport
API 607 Fire Safe Ball Valve
Body: A105, LF2
Ball: 316 Stainless Steel
Seat: Peek
Size: 1/4″ – 2″
Class: 1500lbs (3000psi), 2500lbs (6000psi)
End: Extended Socket Weld, X Socket Weld, Socket Weld X Thread, Thread X Thread
Relief and Safety Valve
Size: 1/4″ – 6″
Body Materials: Brass, Bronze, Carbon Steel, Stainless Steel, Cast Iron and Aluminum
Connections: NPT, Flanged
Pressure Ranging: ANSI 150, 300, 600, 900, 1500, 2500
Service Types: Gas, Vapor, Liquid, Gas or Liquid thermal relief and Steam
